CAPFIT 50

TAUT WIRE MECHANICAL DETECTION FENCE

CapFiT 50 is an innovative and smart perimeter protection solution that detects any intrusion while eliminating false alarms. This concept consists of a wall of taut wires combined with a crush sensor inserted into a detection post. The latter continuously analyses relative variations in movement between the taut wires.
Any attempt to pull apart, cut or lean on it, is then detected. Using the differential principle, CapFiT 50 is totally insensitive to ground movement and temperature distortions.
This innovative solution can be installed on an existing fence, wall, overhang or as a freestanding structure.
Robust, simple to deploy (little civil engineering and energy input), streamlined design, customer return on investment, are some of the benefits that make CapFiT 50 an effective solution for the professional security market.

Main features:

  • Excellent detection quality
  • Very low number of false alarms: about 1 alarm / km / year
  • Can be adapted to all types of fences
  • Totally resistant to weather (rain, wind, snow, fog, extreme temperatures) and ground movement
  • Easy to install and maintain (only 1 connector per post)
  • Very long lifespan
  • Low electrical consumption
  • Optional: real time alarm management with a supervision system or remote monitoring centre
  • Available in the following versions: 1.00 m, 1.50 m, 2.00 m, 2.50 m, 3.00 m, overhang (0.80 m), customised

Download the technical data sheet
Fill in the following form to download the technical data sheet

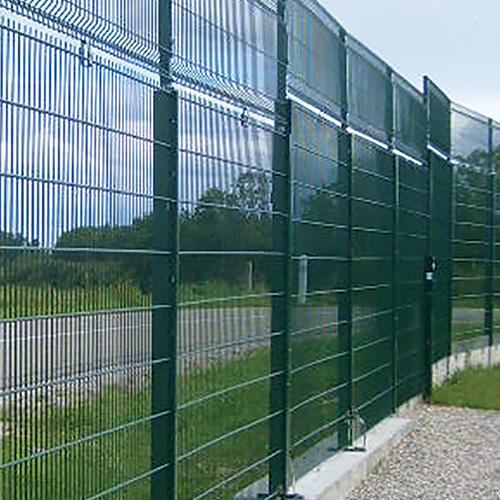

GUÉPARD

BREACH AND CUTTING DETECTION FENCE

The GUÉPARD detection fence looks just like a standard fence with welded panels.
Its major difference is in the design of the panel. It is made with a hollow structure so that it can incorporate a detector cable in a totally invisible way.
Any attempt to cut a panel triggers an alarm. GUÉPARD offers a mesh whose structure can fully detect (horizontal and vertical tubes) or partially detect (horizontal tubes).
The GUÉPARD posts are designed to hold different types of overhang (tilted, electrified, with concertina wire, etc.).

Main features:

  • Detects any attempt to cut the fence
  • Resettable detection overhang
  • Practically no false alarms
  • Overall aesthetics resemble a fence
  • No annoying alarms triggered by bad weather conditions
  • No detection when there are accidental shocks on the Guépard fence

Download the technical data sheet
Fill in the following form to download the technical data sheet

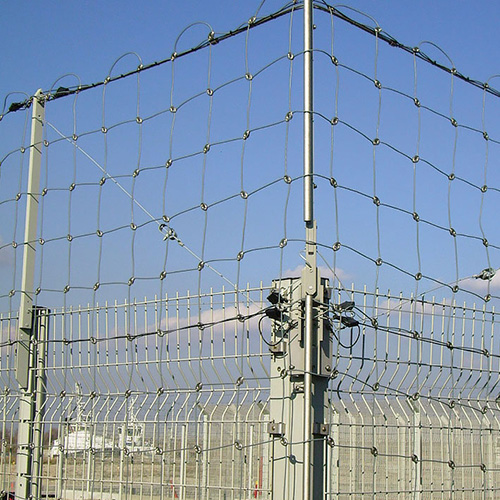

MANTA

DETECTION NET FENCE

The MANTA detection net fence is a detection system intended to provide perimeter protection for sensitive, strategic or confidential sites such nuclear stations, high-voltage stations, airports, detention centres and research laboratories.

The MANTA detection net fence is made up of a net fence with intertwined meshes held in place by shells. The coaxial cable located in the middle of the wire is analysed as “electrical continuity”. Any attempt to breach the net fence by cutting or short-circuiting electrical conductors instantly triggers an alarm.

Main features :

  • Detects any attempt to cut or short-circuit
  • Very few false alarms
  • Easy to adopt on existing structure
  • Discreet and aesthetic system
  • Detection continuity in corners
  • Weather resistant
  • Protected from lightning and interference of industrial origin
  • Switch to dry contact or bus system alarms

Download the technical data sheet
Fill in the following form to download the technical data sheet

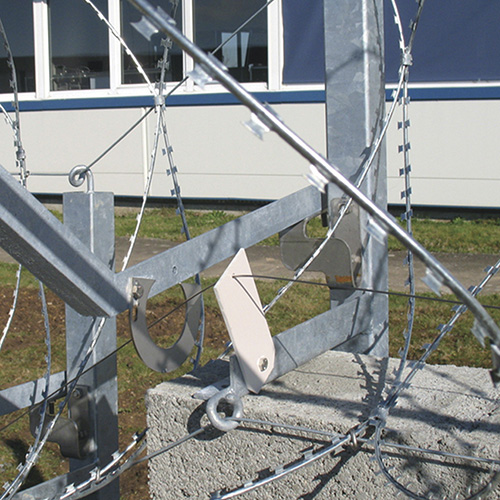

SCORPION

SPRING-MOUNTED DETECTION OVERHANG

SCORPION 50 is an overhang which can be adjusted to any type of wall or height of steel fence, for high-up detection and potential combination with concertina wire.
This solution makes it possible to handle multiple configurations encountered on installations and in particular differences in walls, levels, thickness of wall, steps, acroterion, etc.

Main features :

  • Overhang tilting detection (leaning)
  • Easy to adapt to any type of wall /fence
  • Simple and robust technology

Download the technical data sheet
Fill in the following form to download the technical data sheet

ANACONDA

WIRE-WALL ELECTRIFIED FENCE

The ANACONDA fence has a stainless-steel profile, which makes it possible to hold insulators, which creates a wall of electrified and detecting taut wires.
This aesthetic and discreet system can be installed as a freestanding structure or fitted to an existing fence. Its innovative design makes it compatible with most standard fences on the market, and makes it possible to electrify an existing fence or transform it into a detective fence at a lower cost.

  • JAGUAR 400: Electrified fence with capacitive detection of the touch
  •  COUGAR 400: Electrified fence which detects cutting
  • LYNX 400: Capacitive detection of the touch fence



Main features :

  • Effective and discreet system
  • Installation on existing fence or as a freestanding structure
  • Easy installation on all profiles
  • Good mechanical performance in severe weather conditions
  • Good electrical insulation for use with pulse-type high-voltage
  • JAGUAR 400
  • COUGAR 400
  • LYNX 400

Download the technical data sheet
Fill in the following form to download the technical data sheet
