Logistics sites are facing increasing security challenges. To respond to these new threats, Serpe offers a wide range of solutions adapted to these needs.

CAPFIT 50

TAUT WIRE MECHANICAL DETECTION FENCE

CapFiT 50 is an innovative and smart perimeter protection solution that detects any intrusion while eliminating false alarms. This concept consists of a wall of taut wires combined with a crush sensor inserted into a detection post. The latter continuously analyses relative variations in movement between the taut wires.

Any attempt to pull apart, cut or lean on it is then detected. Using the differential principle, CapFiT 50 is totally insensitive to ground movement and temperature distortions.
This innovative solution can be installed on an existing fence, wall, overhang or as a freestanding structure.
Robust, simple to deploy (little civil engineering and energy input), streamlined design, customer return on investment, are some of the benefits that make CapFiT 50 an effective solution for the professional security market.

Main features :

  • Excellent detection quality
  • Very low number of false alarms: about 1 alarm / km / year
  • Can be adapted to all types of fences
  • Totally unaffected by bad weather (rain, wind, snow, fog, extreme temperatures) and ground movement
  • Easy to install and maintain (only 1 connector per post)
  • Very long lifespan
  • Low electrical consumption
  • Optional: real time alarm management with a supervision system or remote monitoring centre
  • Available in the following versions: 1.00 m, 1.50 m, 2.00 m, 2.50 m, 3.00 m, overhang (0.80 m), customised

Download the technical data sheet
Fill in the following form to download the technical data sheet

    SOGETREL SAS processes your data for the purpose of managing your request to download the technical sheet of our products and, unless you object to it, for commercial prospecting purposes by electronic means. You have rights relating to this processing which are detailed in our Privacy Policy https://www.serpe-surete.com/politique-de-confidentialite/. To exercise these rights, you can contact https://www.serpe-surete.com/contactez-serpe/.

    ANACONDA

    WIRE-WALL ELECTRIFIED FENCE

    The ANACONDA fence has a stainless-steel profile, which makes it possible to hold insulators, which creates a wall of electrified and detecting taut wires.
    This aesthetic and discreet system can be installed as a freestanding structure or fitted to an existing fence. Its innovative design makes it compatible with most standard fences on the market, and makes it possible to electrify an existing fence or transform it into a detective fence at a lower cost.

    JAGUAR 400: Electrified fence with capacitive detection of the touch
    COUGAR 400: Electrified fence which detects cutting
    LYNX 400: Capacitive detection of the touch fence



    Main features:

    • Effective and discreet system
    • Installation on existing fence or as a freestanding structure
    • Easy installation on all profiles
    • Good mechanical performance in severe weather conditions
    • Good electrical insulation for use with pulse-type high-voltage
    • JAGUAR 400
    • COUGAR 400
    • LYNX 400

    Download the technical data sheet
    Fill in the following form to download the technical data sheet

      SOGETREL SAS processes your data for the purpose of managing your request to download the technical sheet of our products and, unless you object to it, for commercial prospecting purposes by electronic means. You have rights relating to this processing which are detailed in our Privacy Policy https://www.serpe-surete.com/politique-de-confidentialite/. To exercise these rights, you can contact https://www.serpe-surete.com/contactez-serpe/.

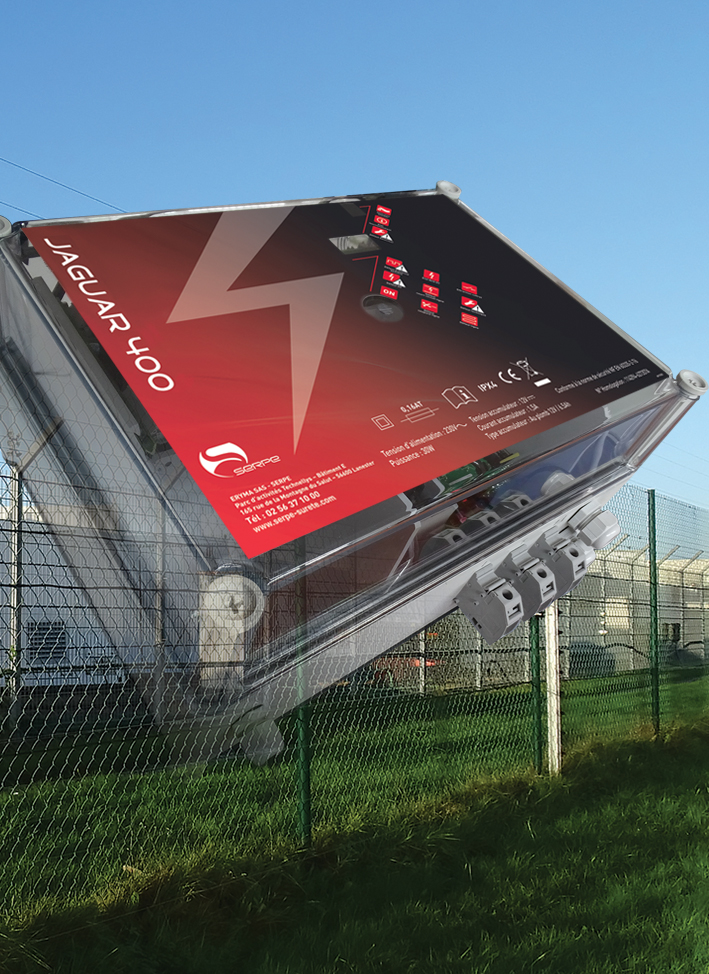

      JAGUAR 400

      FENCE ENERGISER WITH CAPACITIVE DETECTION OF THE TOUCH

      The JAGUAR 400 energiser, combined with a network of conductive cablets, makes it possible to have a perimeter protection system combining a deterrent, repellent and delaying effect.
      This original solution combines the generation of two different electrical signals on the same wire.
      The first one – a 10,000 volt high-voltage pulse type – acts as a deterrent. The second one – a very low-voltage type – provides very sensitive detection of human contact with the fence.
      It has the advantage of providing effective and permanent detection of the touch.
      The JAGUAR 400 energiser complies with the EN-60335-2-76 standard ensuring the safety of people.

      Main features:

      • 10,000 volts high voltage signal
      • Effective and permanent capacitive touch detection on all wires
      • Deterrent, repellent and delaying effect
      • Very few false alarms
      • Not really affected by weather conditions such as wind, rain, fog, lightning, etc.
      • Option to deactivate High-Voltage electrification
      • High-voltage synchronisation for multiple zones
      • Dry contact or JBUS standard protocol communication
      • Battery-backed power option with temperature load compensation

      Download the technical data sheet
      Fill in the following form to download the technical data sheet

        SOGETREL SAS processes your data for the purpose of managing your request to download the technical sheet of our products and, unless you object to it, for commercial prospecting purposes by electronic means. You have rights relating to this processing which are detailed in our Privacy Policy https://www.serpe-surete.com/politique-de-confidentialite/. To exercise these rights, you can contact https://www.serpe-surete.com/contactez-serpe/.

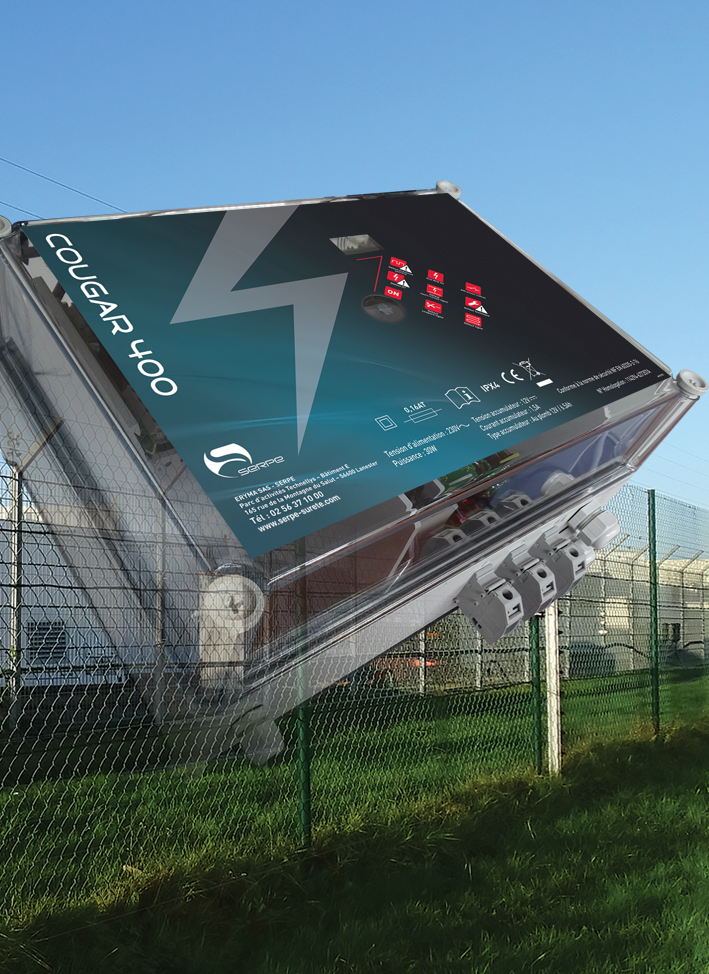

        COUGAR 400

        FENCE ENERGISER WITH CAPACITIVE DETECTION OF THE TOUCH

        The COUGAR 400 energiser, combined with a network of conductive cablets, makes it possible to obtain a perimeter protection system combining a deterrent, repellent and delaying effect.
        The 10,000 Volt High Voltage signal also makes it possible to detect cutting of cablets.
        The COUGAR 400 energiser complies with the EN-60335-2-76 standard ensuring the safety of people.

        Main features:

        • 10,000 volts high voltage signal
        • Very few false alarms
        • Deterrent, repellent and delaying effect
        • Not really affected by weather conditions such as wind, rain, fog, lightning, etc.
        • Option to deactivate High Voltage electrification
        • High-voltage synchronisation for multiple zones
        • Dry contact or JBUS standard protocol communication
        • Battery-backed power option with temperature load compensation

        Download the technical data sheet
        Fill in the following form to download the technical data sheet

          SOGETREL SAS processes your data for the purpose of managing your request to download the technical sheet of our products and, unless you object to it, for commercial prospecting purposes by electronic means. You have rights relating to this processing which are detailed in our Privacy Policy https://www.serpe-surete.com/politique-de-confidentialite/. To exercise these rights, you can contact https://www.serpe-surete.com/contactez-serpe/.

          LYNX 400

          SENSOR DEVICE WITH CAPACITIVE DETECTION OF THE TOUCH

          The LYNX 400 capacitive detection of the touch unit combined with a network of conductive cablets, makes it possible to have a perimeter protection fence which detects cutting and short-circuits, but also touch, with its touch capacitive technology.
          The LYNX 400 touch detection unit complies with the EN 60950-1 standard ensuring the safety of people.

          Main features:

          • Effective and permanent capacitive touch detection on all wires.
          • Deterrent effect.
          • Very few false alarms.
          • Not really affected by weather conditions such as wind, rain, fog, lightning, etc.
          • Dry contact or JBUS standard protocol communication.

          Download the technical data sheet
          Fill in the following form to download the technical data sheet

            SOGETREL SAS processes your data for the purpose of managing your request to download the technical sheet of our products and, unless you object to it, for commercial prospecting purposes by electronic means. You have rights relating to this processing which are detailed in our Privacy Policy https://www.serpe-surete.com/politique-de-confidentialite/. To exercise these rights, you can contact https://www.serpe-surete.com/contactez-serpe/.

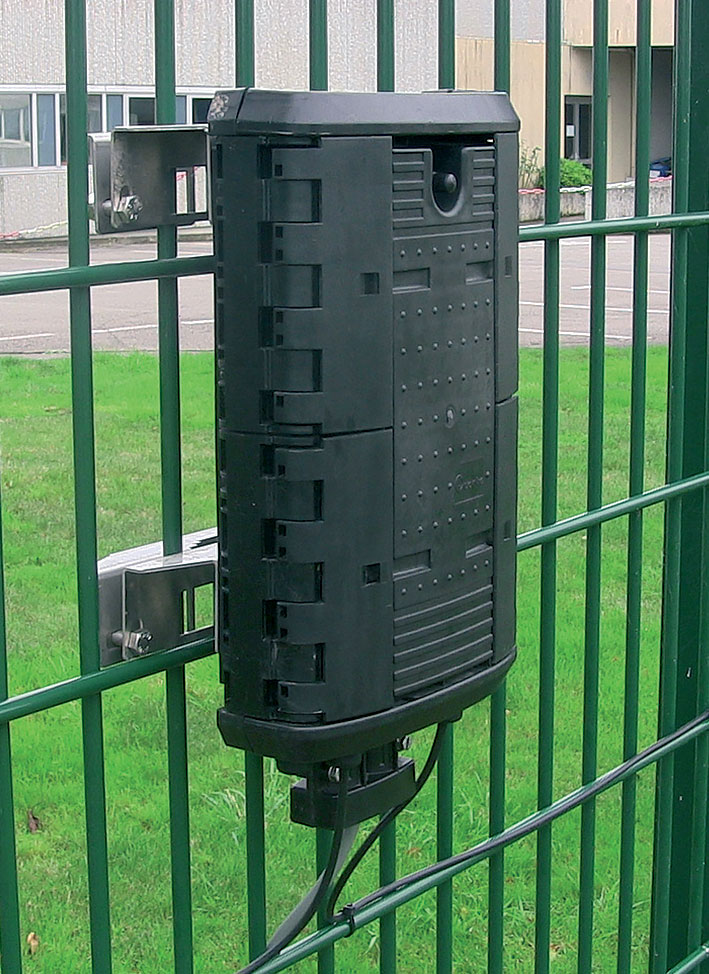

            MYGALE 4S+

            PIEZOELECTRIC CABLE DETECTOR

            Mygale 4S + is an outdoor sensor which makes it possible to retrieve and analyse the vibrations from a fence when there is an intrusion. It consists of a local data acquisition unit, which can manage up to 4 segments of 150m of piezoelectric cable.
            Vibrations caused by an individual attempting to cut, climb or lift the fence are detected and sent to the local data acquisition unit. This performs the necessary processing to analyse measurements and trigger the alarm.
            Networking sensors enables linear deployment over a large distance of a detection system that combines efficiency, discretion and sector-based division of the alarm.

            Main features:

            • Excellent detection quality
            • Economical and reliable solution
            • Easy to install and set (Bluetooth, RS)
            • Simple and robust technology
            • Sensitivity can be adjusted for each sector
            • Switch to dry contact or RS485 bus system alarms

            Download the technical data sheet
            Fill in the following form to download the technical data sheet

              SOGETREL SAS processes your data for the purpose of managing your request to download the technical sheet of our products and, unless you object to it, for commercial prospecting purposes by electronic means. You have rights relating to this processing which are detailed in our Privacy Policy https://www.serpe-surete.com/politique-de-confidentialite/. To exercise these rights, you can contact https://www.serpe-surete.com/contactez-serpe/.

              ERYvision

              SUPERVISION SYSTEM

              ERYvision is the product of several generations of alarm centralisation systems which have been deployed several hundred times in France and abroad. It enables supervision and interaction between security systems via a single control station.
              ERYvision is a long-term, ergonomic and scalable supervision system, which can integrate many applications on the market by developing gateways.
              The GUI with the provision of summary information makes it possible to intuitively operate, visualise and analyse the situation overall in real time.

              Main features:

              Supervision and interactions of security sub-systems:

              • Serpe sensors
              • Central intrusion alarm system – Perimeter sensors
              • Video surveillance (servo-control of the video
                based on events)
              • Access control – People protection system
              • GSM jammer



              Operating tool which is ergonomic and simple to use:

              • Configurable GUI
              • Modular and scalable architecture
              • Real-time monitoring of network equipment
              • WINDOWS (services, processes) software monitoring
              • Guaranteed maintenance of servers in operational condition: instant redundancy, instant configuration reloading
              • Servo-control of actions triggered based on an event, time slot or manually
              • Alarm transmission to remote monitoring
              • Alarm transmission to another supervisor (ModBus, TCP messages)
              • The entire supervision configuration does not require any programming skills
