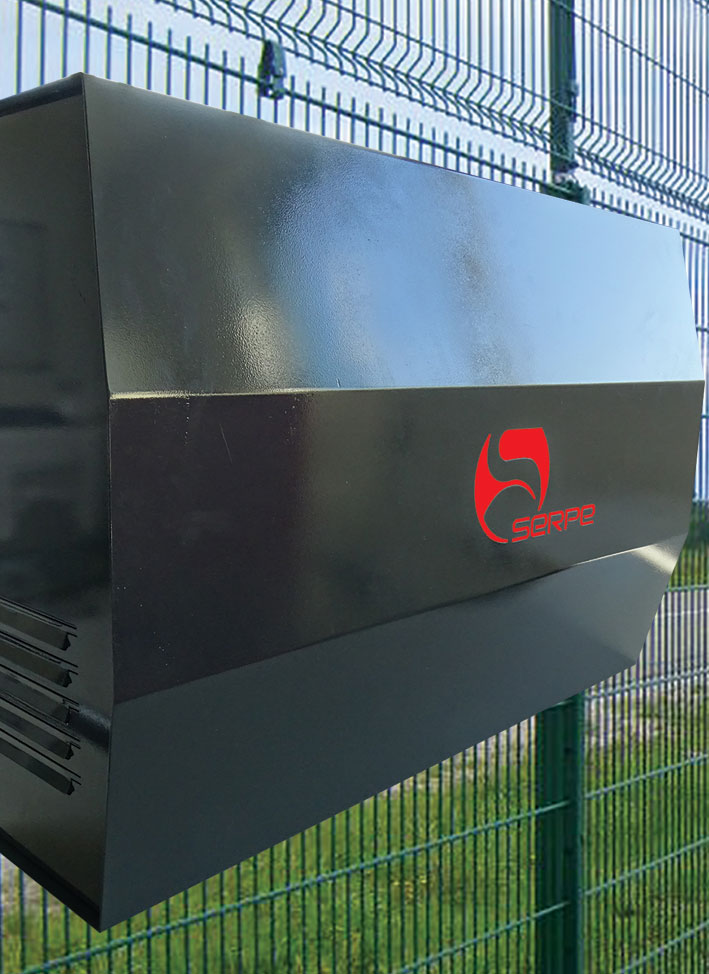

SERPE-Box

ALARM HUB

SERPE-Box is a hub which makes it possible to manage Serpe perimeter protection sensors with 2 RS485 buses and generate alarm summaries.

The alarm summaries are fully configurable using a configurator, which is very easy to use and requires no programming knowledge. The product comes in the form of a metal box that can be mounted on a wall or other indoor support. The alarm summaries are provided in the terminal block.

Main features:

  • Management of Serpe sensors via buses
  • Summaries of alarms provided with dry contact or IP link (ModBus)
  • Fully configurable system
  • Scalable solution (option to add sub-systems)
  • Optional (for configuration of less than 1500 alarm points):
  • On-screen operation with GUI
  • Video management system (Omnicast or Milestone)
  • Intrusion management system (Siemens, Synchronic)
  • Management of Input / Output modules via IP link
  • Universal gateway between sub-systems
  • IP communication with Horus AzurSoft remote monitoring

Cyber Fence Link

JBus RS485

The Cyber Fence Link solution secures the fieldbus connecting to JBus RS485 sensors in order to protect it from cyber attacks.

This innovative technology is patented by SERPE.

The AES128 algorithm in GCM mode, selected for its resistance, is recommended by ANSSI and NIST.

It guarantees the inviolability of communications and the validity of the information transmitted by the sensors to the supervision system: Integrity, Authenticity, Non-replay and Non-repudiation.

Main features:

  • High level of protection: confidentiality, integrity, authentication, and non-replay
  • Compatible with the entire range of SERPE sensors
  • Can be deployed in new installations or retrofits
  • Simple and quick to implement
  • Installation and configuration without PC tools or software
  • Easy maintenance
  • Ability to mix encrypted and unencrypted sensors on the network
  • Fully compatible with the features of previous generations (Hermès 150-B and Hermès 300), thus ensuring easy replacement

IP Module

Interface card

The IP communication module is an interface card that can be inserted into a sensor from the SERPE range.

It provides this sensor with IP connectivity for monitoring, as well as a PoE (Power Over Ethernet) power supply function.

A high level of security is ensured by:

  • TLS encryption providing identification, authentication, confidentiality, and communication integrity.
  • Implementation of the 802.1x authentication protocol for network access control, protecting the network against unauthorized access.

Main features:

  • Compatible with all sensors in the Serpe range
  • Can be deployed as new or migrated
  • Simple and quick to implement
  • Installation and configuration without PC tools or software
  • Easy maintenance
  • High level of security: TLS 1.2 encryption and 802.1x authentication
  • Compatible with any supervisor including the Modbus TCP protocol
